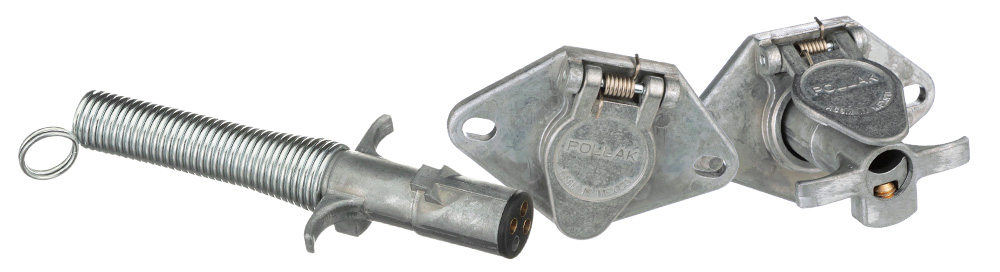

4-Pole Connectors
- Zinc die-cast 4-pole unit incorporates many new and improved features
- Extended exterior and socket conceals terminals
- Unique cable clamp prevents chafing, give more cable support, and saves installation time
- Integral finger grips for positive pull, difficult to shakes loose
- Stainless steel spring
- Dust and water resistant
- Polarized for proper wiring
- Terminals accept up to #12 gauge wire
- Two 1/4” diameter mounting holes on 4-pole sockets, 2-7/8" on center, mounts through 1-3/8" diameter hole

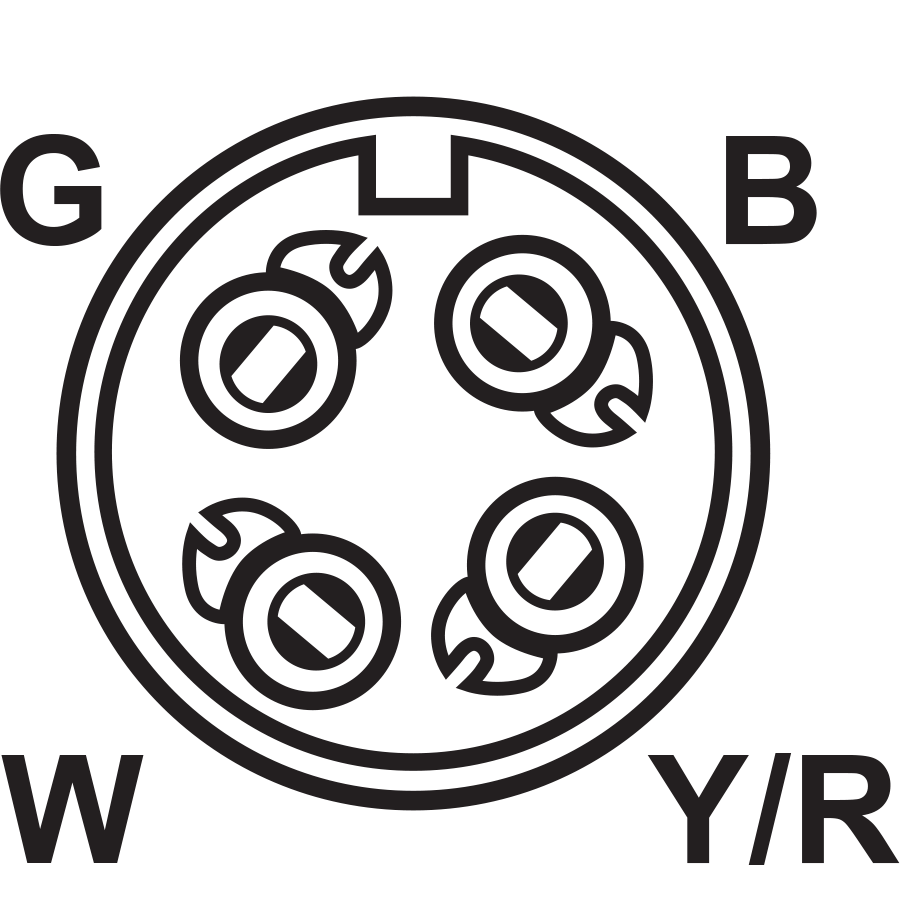

| 4-POLE SOCKET |
4-POLE POSITION |
5-POLE POSITION |
COLOR | CIRCUITS | 5-POLE SOCKET |
 |
W | 1 | White | Ground Return |  |
| Y/R | 3 | Yellow | Left Turn & Brake Lights |
||
| 4-POLE PLUG |
4 | Red | 5-POLE PLUG |
||
 |
G | 5 | Green | Right Turn & Brake Lights |
 |
| B | 2 | Brown | Tail Lights |
